單元式金屬封閉環網開關設備概述 Overview
XGN15-12(SF6)型單元式交流金屬封閉環網開關設備 (以下簡稱環網柜) 是我們在引進技術并按照國內農電及城網改造之要求而自行設計、研制成功的新一代高壓電器產品。各項技術性能指標全符合IEC62271-200:2003和GB3906標準。
環網柜的主開關、操作機構及元器件采用公司原裝件或采用進口部件國內組裝生產的sfl-12/24型開關設備，也可根據用戶需要配裝ABB公司原裝HAD/US型SF6。斷路器或VD4-S型真空短啊錄取。其操作方式分為手動、電動兩種。
柜體經數控機床加工后鉚接而成，防護等級達到IP3X，并有可靠的機械聯鎖和防誤操作功能。本產品具有體積小、重量輕、外型美觀、操作簡便、長壽命、高參數、無污染、少維護等顯著的特點。
XGN15-12(SF6)型單元式交流金屬封閉環網開關設備， 適用于交的電力網絡中，作為電能的接收和分配之用。柜內主開關為SF6開關。
XGN15-12 (SF6) type AC metal closed loop switchgear (hereinafter referred to as ring cabinet) is a new generation of high voltage electrical appliances designed and developed by ourselves in accordance with the requirements of domestic rural power and urban power network renovation after introducing advanced technology from abroad. All technical performance indicators meet IEC 62271-200:2003 and GB3906 standards.
The main switch, operation mechanism and components of the ring network cabinet are the sfl-12/24 switchgear manufactured by the company or by domestic assembly of imported components. The original HAD/US SF6 of ABB company can also be fitted according to user's needs. Circuit breaker or VD4-S vacuum short ah admission. Its operation mode is divided into manual and electric.
The cabinet body is riveted by NC machine tools, and the protection level reaches IP3X. It also has reliable mechanical interlocking and error-proof operation functions. This product has the characteristics of small size, light weight, beautiful appearance, simple operation, long life, high parameters, pollution-free, less maintenance and so on.
XGN15-12 (SF6) type AC metal closed loop switchgear is suitable for AC power network, and it is used for receiving and distributing electric energy. The main switch in the cabinet is SF6 switch.

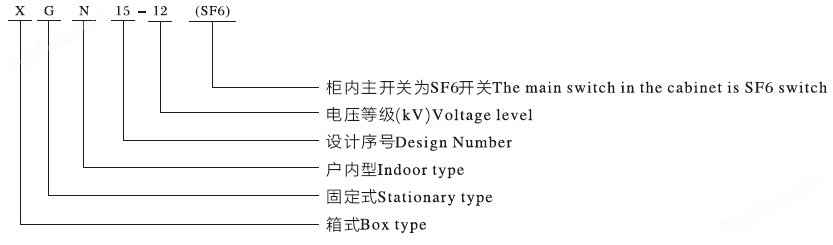

單元式金屬封閉環網開關設備型號含義 Type meaning：
單元式金屬封閉環網開關設備使用環境條件 Use environmental conditions：
◆ 環境溫度：上限+40℃，下限-25℃；
◆ 海拔高度：海拔高度不超過2000mm；
◆ 相對溫度：日平均值不大于95%；月平均值不大于90%；
◆ 周圍環境：周圍空氣不受腐蝕氣體或可燃性氣體、水蒸氣等明顯污染。
◆ 無經常性的劇烈振動。
◆ Environmental temperature: upper limit + 40 C, lower limit - 25 C;
◆ Altitude: Altitude not exceeding 2000 mm;
◆ Relative temperature: daily average is not more than 95%, monthly average is not more than 90%.
◆ Ambient environment: Ambient air is not obviously polluted by corrosive gas or flammable gas, water vapor, etc.
◆ No frequent violent vibration.
單元式金屬封閉環網開關設備主要技術參數 The main technical parameters：
單元式金屬封閉環網開關設備外形及安裝尺寸 Dimensions and mounting dimensions
