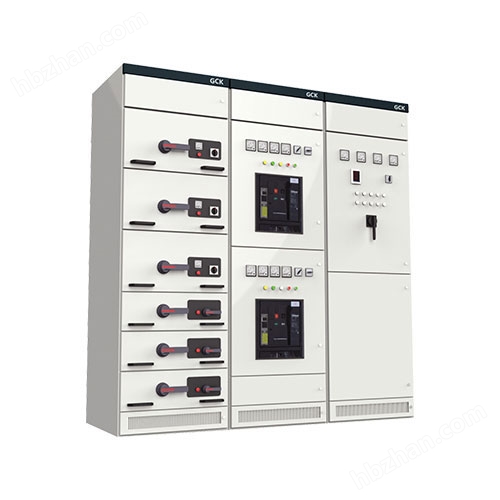

GCK低壓抽出式成套開關設備概述 Overview
GCK 低壓抽出式開關柜成套開關設備適用于交流50Hz，額定工作電壓380V 的低壓配電系統。它包含動力中心(PC) 和電動機控制中心(MCC) 的功能，各項技術參數均達到國家標準，具有結構、外形美觀、電氣性能高、防護等級高、安全可靠、維護方便等特點，是冶金、石油、化工、電力、機械、輕紡等行業低壓供電系統理想的配電裝置。
本產品符合IEC-439、GB7251.1 標準。
GCK LV withdrawable switchgear cabinetis applicable to the low voltage distribution system with AC50Hz, rated working voltage 380V. It contains power center (PC) and motor control center (MCC)functions. Each technical parameter all reaches national standards. With characteristics of advanced structure, beautiful appearance,
high electric performance, high protect-ion grade, reliable and safe and easy to maintain.It is the ideal distribution device for low voltage power supply system in metallurgy, petroleum, chemical,power, machinery and light weaving industries etc.
The product accords with standards IEC-439, GB7251.1.
GCK低壓抽出式成套開關設備主要特點 Main feature
1. GCK1、GCJ1 為拼裝式組合結構，基本骨架采用專用型材，拼裝而成。
2. 柜體骨架，零件尺寸以及開孔尺寸按基本模數E=25mm 變化。
3. 在MCC 方案中，柜內部分成五個區域（室）：水平母線區、垂直母線區、功能單元區、電纜室、中性接地母線區。各區互相隔離，保證線路正常運行，有效防止故障擴大。
4. 由于框架的所有結構均以螺釘緊固連接而成，避免了焊接變形和應力，提高了精度。
5. 零部件通用性強，適用性好，標準化程度高。
6. 功能單元（抽屜）的抽出、插入為杠桿操作，加上配置滾動軸承操作輕便、可靠。
1. GCK1 and REGCJ1 are assemble type combined structure. The basic skeleton is assembled by adopting special bar steel.
2. Cabinet skeleton, component dimension and starter size change according to basic modulus E=25mm.
3. In MCC project, parts in cabinet are divided into five zones (compartment): horizontal bus bar zone, vertical bus bar zone, function unit zone, cable compartment, and neutral earthing bus bar zone. Each zone is separated mutually for circuit’s normal running and effectively preventing fault expansion.
4. As all structures of framework are connected and firmed by bolts, so it avoids the welding distortion and stress, and upgrades the precision.
5. Strong general performance, well applicability and high standardization degree for components.
6. Draw-out and insert of function unit (drawer) is lever operation, which is easy and reliable with rolling bearing.
GCK低壓抽出式成套開關設備使用環境條件 Use environmental conditions
1. 海拔高度不超過2000 米。
2. 周圍空氣溫度不高于+40℃，不低于-5℃，并且24h 內平均溫度不高于+35℃。
3. 大氣條件：空氣清潔，相對濕度在溫度為+40℃時不超過50%，在溫度較低時允許有較高的相對濕度，例如+20℃時為90%。
4. 沒有火災、爆炸危險、嚴重污染、化學腐蝕及劇烈震動的場所。
5. 與垂直面傾斜不超過5°。
6. 控制中心適于以下溫度的運輸和儲存過程：-25℃ ~+55℃，在短時間內( 不超過24h) 不超過+70℃。
1. Altitude above sea level should not exceed 2000M.
2. Ambient air temperature: -5℃ ~+40℃ and the average temperature should not exceed +35℃ in 24h.
3. Air condition: With clean air. Relative humidity should not exceed 50% at +40℃ .Higher relative humidity is allowed at lower temperature. Ex. 90% at +20℃ .
4. Places without fire, explosive danger, serious pollution, chemical corrosion and fierce vibration.
5. Installation gradient not exceed 5° .
6. Control center is suitable to the transportation and store with following temperature :-25℃ ~+55℃ ,in short time (within 24h) it should not exceed +70℃ .
GCK低壓抽出式成套開關設備主要技術參數 The main technical parameters
GCK低壓抽出式成套開關設備內部結構 Internal structure
