Areliable and undisturbed operation of modern production plants and industrial installations is essential these days. Therefore, a clear structuring and monitoring is not only useful in our eyes, but also urgently needed

Indu-Sol provides with INBLOX® a modular solution geared to the customer’s needs - the modular system for your PROFIBUS!

The modular structure allows a variety of new requirements to the PROFIBUS network topology: clear displaying via LED, physical network diagnosis, remote access and permanent monitoring.

INBLOX® Video

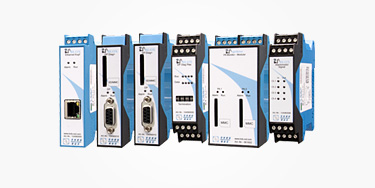

INBLOX® as infrastructure component

The modular repeater INBLOX® combines the feature of signal refreshment of a usual repeater and an extended diagnosis via LED. The INBLOX® Repeater gains a clear structure of your PROFIBUS network: it builds segments in star structure, which are galvanically isolated from each other. Thus, a commissioning segment-by-segment or the replacing of single components can be made without affecting other segments. Errors can be located segment-related, because LEDs display the network status and health.

INBLOX® Basic Repeater

Basic repeater with LED diagnosis for a star structure

Product details

INBLOX® Intelligent Repeater

Intelligent repeater for permanent PROFIBUS monitoring

Product details

INBLOX® for a permanent network monitoring

Besides displaying of the network health via LED the INBLOX® repeater monitors permanently the logical data traffic of PROFIBUS DP and PA. All data are shown clearly on a web interface. Depending on the module you are able to monitor and analyse the physical transmission quality with quality values in a bar diagram. Additional measuring tool for monitoring the fieldbus quality is not anymore necessary.

PROFIBUS DP / PA

INBLOX® INspektor®

Diagnosis and parametrization for your PROFIBUS DP/PA

現代化生產工廠和工業設施的可靠且不受干擾的運行至關重要。因此，清晰的結構和監控不僅對我們有用，而且迫切需要

Indu-Sol提供了INBLOX®模塊化解決方案，可滿足客戶的需求-PROFIBUS模塊化系統！

模塊化結構對PROFIBUS網絡拓?fù)涮岢隽烁鞣N新要求：通過LED清晰顯示，物理網絡診斷，遠程訪問和監控。

INBLOX®
INBLOX®視頻
INBLOX®作為基礎設施組件
模塊化中繼器INBLOX®結合了常規中繼器信號刷新和通過LED進行擴展診斷的功能。 INBLOX®轉發器使您的PROFIBUS網絡具有清晰的結構：它以星形結構構建網段，這些網段彼此電氣隔離。因此，可以在不影響其他段的情況下進行逐段調試或更換單個組件。由于LED可以顯示網絡狀態和運行狀況，因此可以將錯誤定位在與段相關的位置。

具有LED診斷功能的基本中繼器，用于星形結構
INBLOX®基本中繼器

具有LED診斷功能的基本中繼器，用于星形結構

產品詳情
用于中繼PROFIBUS監控的智能中繼器
INBLOX®智能中繼器

用于中繼PROFIBUS監控的智能中繼器

產品詳情
INBLOX®用于網絡監控
除了通過LED顯示網絡運行狀況之外，INBLOX®中繼器還監控PROFIBUS DP和PA的邏輯數據流量。所有數據均清晰顯示在Web界面上。根據模塊的不同，您可以使用條形圖中的質量值來監視和分析物理傳輸質量。不再需要用于監視現場總線質量的附加測量工具。

PROFIBUS DP / PAD PROFIBUS DP / PA的診斷和參數化
INBLOX®INspektor®

PROFIBUS DP / PA的診斷和參數化

Areliable and undisturbed operation of modern production plants and industrial installations is essential these days. Therefore, a clear structuring and monitoring is not only useful in our eyes, but also urgently needed. The INBLOX® Basic Repeater meets this requirements obviously.

The head module without higher intelligence serves primarily as repeater and the compatible Diag Rep extension module enables a diagnosis via LED. The Basic Repeater creates up to five galvanically isolated segments in star structure.

Sample configuration

Extension modules

DP Diag Repeater X1

DP Diag Repeater X1

The module DP Diag Rep X1 with sub-D connector can open one segment. Up to five extension modules can be connected to the Basic Repeater and thus up to 10 segments per network can be provided. LEDs allow a simple diagnosis and monitoring.

DP Diag Repeater X2

DP Diag Repeater X2

The module DP Diag Rep X2 provided with two sub-D connectors each can open two segments. Up to five extension modules can be connected to the Basic Repeater and thus up to 15 segments per network can be provided. LEDs allow a simple diagnosis and monitoring.

DP Diag Repeater

DP Diag Repeater X4

The extension module DP Diag Rep X4 is provided with four terminals and thus can open four segments. Up to five DP Diag Rep modules can be connected to the Basic Repeater, therefore 25 segments per network can be created. LEDs allow a simple diagnosis and monitoring and show the fieldbus status and the health of the network.

Intelligent Repeater

An evaluation of previous error telegrams, telegram repetitions, restarts of devices, edge stepnesses is provided by a connection to the E-head module with integrated web server.

如今，現代化生產工廠和工業設施的可靠且不受干擾的運行至關重要。因此，清晰的結構和監控不僅對我們有用，而且迫切需要。 INBLOX®基本中繼器顯然滿足了這一要求。

沒有更高智能的頭模塊主要用作中繼器，而兼容的Diag Rep擴展模塊可通過LED進行診斷?；局欣^器多可在星形結構中創建五個電隔離段。

樣本配置
樣本配置
擴展模塊
DP診斷中繼器X1
DP診斷中繼器X1
DP診斷中繼器X1
具有sub-D連接器的DP Diag Rep X1模塊可以打開一個網段?；局欣^器多可以連接五個擴展模塊，因此每個網絡多可以提供10個網段。 LED使診斷和監視變得簡單。

DP診斷中繼器X2
DP診斷中繼器X2
DP診斷中繼器X2
帶有兩個sub-D連接器的模塊DP Diag Rep X2每個可以打開兩個段?；局欣^器多可以連接五個擴展模塊，因此每個網絡多可以提供15個網段。 LED使診斷和監視變得簡單。

DP診斷中繼器
DP診斷中繼器
DP診斷中繼器X4
擴展模塊DP Diag Rep X4帶有四個端子，因此可以打開四個段。基本中繼器多可以連接五個DP Diag Rep模塊，因此每個網絡可以創建25個網段。 LED指示燈可實現簡單的診斷和監控，并顯示現場總線狀態和網絡的健康狀況。

智能中繼器
通過與帶有集成Web服務器的E-head模塊的連接，可以評估以前的錯誤電報，電報重復，設備重啟，邊緣步距
