Three parameter combined 三合一探頭油溫0-100振動0-20油位-10-40

這種應用于冷卻塔風機安全運行監測的組合探頭，在其內部分別集成了測量減速箱油溫、油位、和風機機械振動信號的傳感、轉換和變送電路，探頭直接輸出與這些安全參量對應的4～20mA標準電流信號。該探頭可以直接設備安全監控器配接，也可以與DCS，PLC計算機測控系統連接使用。 該探頭能夠全方向監測受控設備最為關鍵的安全運行指標---機械振動。它同時完成X、Y、Z三個正交方向的高質量振動測量符合標準化組織標準以及減速箱內部潤滑油溫度的測量。
   探頭內部采用美國原產的微機械加工工藝振動傳感器，傳感器獲取的振動信號再經由帶通波器、變換器、放大器、真有效值轉換器，zhui終由電壓/電流驅動電路產生出與振動烈度成正比的4～20mA標準電流信號。
   該探頭中集成了四個兩線制4～20mA變送器，即可以與風機安全監控器配接，也可以直接與計算機數據采集測控系統(DCS、PLC等)連接使用。

溫度測量特性： 潤滑油溫度測量范圍：0～100 ℃ ， 溫度測量綜合誤差：±3℃
●油位測量特性： 潤滑油油位測量范圍：-10～40㎜，   油位測量綜合誤差： ±5㎜ （0㎜處為減速箱正常油位下油限位置，被測介質必須是非導電性介質）
●振動測量特性： 振動測量范圍：0～20 ㎜/s ，測量輸出與振動速度的真有效值（RMS）成正比，振動測量頻帶范圍：10～1000HZ，振動測量綜合誤差：±1㎜/s
●信號輸出特性： 電流型輸出：DC/4～20mA ， zhui大負載電阻測算（含傳輸線內阻）Rmax=（V－15）/0.02  （其中V為供電電壓）
●供電特性： 推薦工作電壓：DC/24V±2V，空載工作電壓：DC/15V，zhui高過載電壓：DC/36V ，zhui大瞬時工作電流：200mA，內設電壓極性反接保護
●環境特性： 環境溫度范圍：－20～80℃，環境濕度范圍：0～100％（端口使用704硅橡膠密封），環境振動條件：不小于3倍振動量程上限。

WL900型工業循環水中心管理系統	WLL970型可變標度多通道監控儀
KWL933型工業涼水塔風機控制器	WL990型64路點位檢測儀
WLL939B型風機安全運行監控器	WL93306三參數組合探頭
WLL6939B3型風機安全監控器	WLLO939SB3型三參數組合探頭
WLL9939B4型風機安全監控器	WLL9939SB4型三維振動速度及溫度變送器
WLL32型雙通道設備安全監控器	VWRT-2T型振動速度及溫度變送器
WLL34型四通道設備安全監控器	WART-1BT型三維振動加速度及溫度變送器
WLL939B4-4型設備安全監控器	WLL939NCS型風機轉速頻率表
GPT/DPT系列兩線制壓力/壓差變送器	RT2系列兩線制溫度變送器

hree parameter combination (oil level temperature vibration combination) probe is a general type combined probe that is used in cooling tower fan safety monitoring system. It can be connected with a variety of general two instruments, or computer data acquisition and control system (DCS, PLC, etc.).

This is applied to the fan gear box combined probe for safe operation of monitoring, in its internal integrated measuring temperature, oil level, vibration signal sensing, conversion and transmission circuit of direct output and the security parameters corresponding to the 4 ~ 20mA standard current signal, can be matched with a variety of general-purpose two meter or      computer digital acquisition monitoring system.

The probe temperature measurement with platinum resistance sensor and semiconductor integrated device; level measurement using a capacitive sensing principle; sensor for measuring      vibration, mechanical vibration acceleration signal acquisition, band-pass filter, an integral and true effective value through the amplifier (RMS) converter, the vibration waveform in the effective bandwidth of it effective value conversion; finally, the oil temperature, vibration generated by the 4 ~ 20mA output.

three parameter combination probe, the probe is an external thread form, is installed in the threaded installation hole of the fan reduction box, and the probe rod is inserted into the reduction box, so as to get the lubricating oil temperature, the lubricating oil level and the box vibration signal in the reduction box, and complete the transformation output. Thread specifications and probe inserts need to be declared at the time of order. See Figure1.

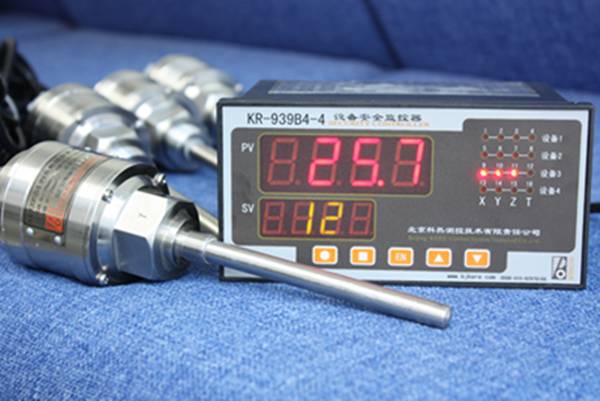

[figure 1] exterior pattern

• Temperature measurement characteristics;

Measurement range of lubricating oil temperature：0～100 ℃ ，Compreh

-ensive error of temperature measurement：±1℃

• Oil level measurement characteristics:

Measurement range of lube oil level：0～50㎜（10 mm for the gear box under normal oil level oil limit position）, Maximum error of oil level measurement： <= ±1㎜

Ambient temperature from -40 to 65 C（Extreme temperature resistance from -50 to 150 C）

• Vibration measurement characteristics：

   Range of vibration measurement：0～20 ㎜/s ，The measurement output is proportional to the effective value of the vibration velocity (RMS). Frequency range of vibration measurement: 10～1000HZ, Maximum error of vibration measurement: <=±1㎜/s

• Signal output characteristics;

Active current type output：DC/4～20mA ，Requirements for passive resistive load。Maximum load resistance：< 300 Ohm

• Supply characteristics of power supply：

working voltage：DC/24V±4V，Maximum protection voltage：DC/30V ，Rated current：DC/80mA, Maximum instantaneous working current：120mA，Internal voltage Ambient temperature range：－20～80℃，Ambient humidity range：0～100％（The port is sealed with 704 silicone rubber seals）

• Electrical connections：

Two four bit terminals：+24V power supply、GND、It 、t-COM、Io、o-COM、Iv、v-COM：It temperature current signal output；Io oil level current signal output；Iv vibration current signal output：The typical connection refer to the schematic diagram of the connection principle of the probe [figure 2].
